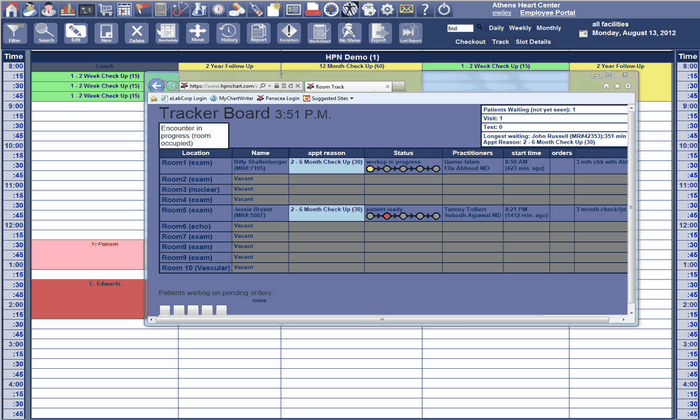

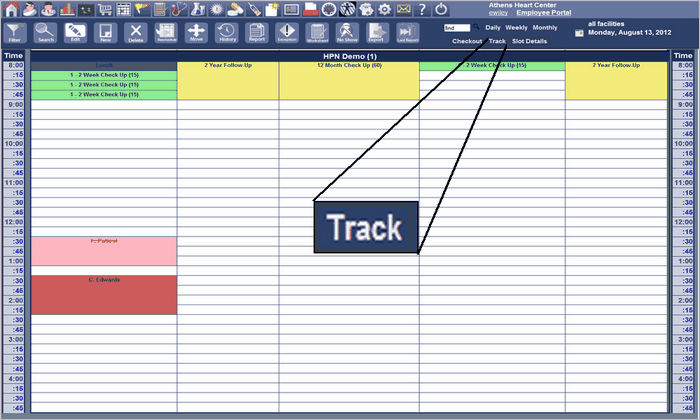

The Tracker Board displays the status of the Clinical Patient Rooms such as examination rooms, CT scan, Nuclear, etc. To display the Tracker Board Click the word Track in the word group just below the Schedule View Word Commands. See Appointment Scheduling Front Desk Figure 77.
If the room is not occupied by a patient, the tracker shows no activity. If the room is in use, it shows the status and the name of the patient occupying the room. The tracker board will refresh automatically every minute to give the current status of the rooms. The Tracker board also shows the work in process. It uses a series or color and status dots of various colors to indicate the status or the patient occupying the room.
First Dot |
Work up in Process |
Color is yellow to indicate the status position. |
Second Dot |
Patient Waiting |
Color is red to indicate the status position. |
Third Dot |
Encounter in Process |
Color is yellow to indicate the status position. |
Fourth Dot |
Patient Waiting Test or Lab Work |
Color is multicolored to indicate the status position. |
Fifth Dot |
Room is Free |
Color is green to indicate the room is not occupied and also moves the patient into the checkout screen. |
Clicking on the Patient’s name will display a pop-up window giving Two Main Menu Icons as shown in Tracker Board Front Desk Figure 79. They are Worksheet (See the section labeled Go To Worksheet in this chapter) and Patient Dashboard (See the section labeled Dashboard in Chapter 5). Clicking on those Icons will display those screens.
